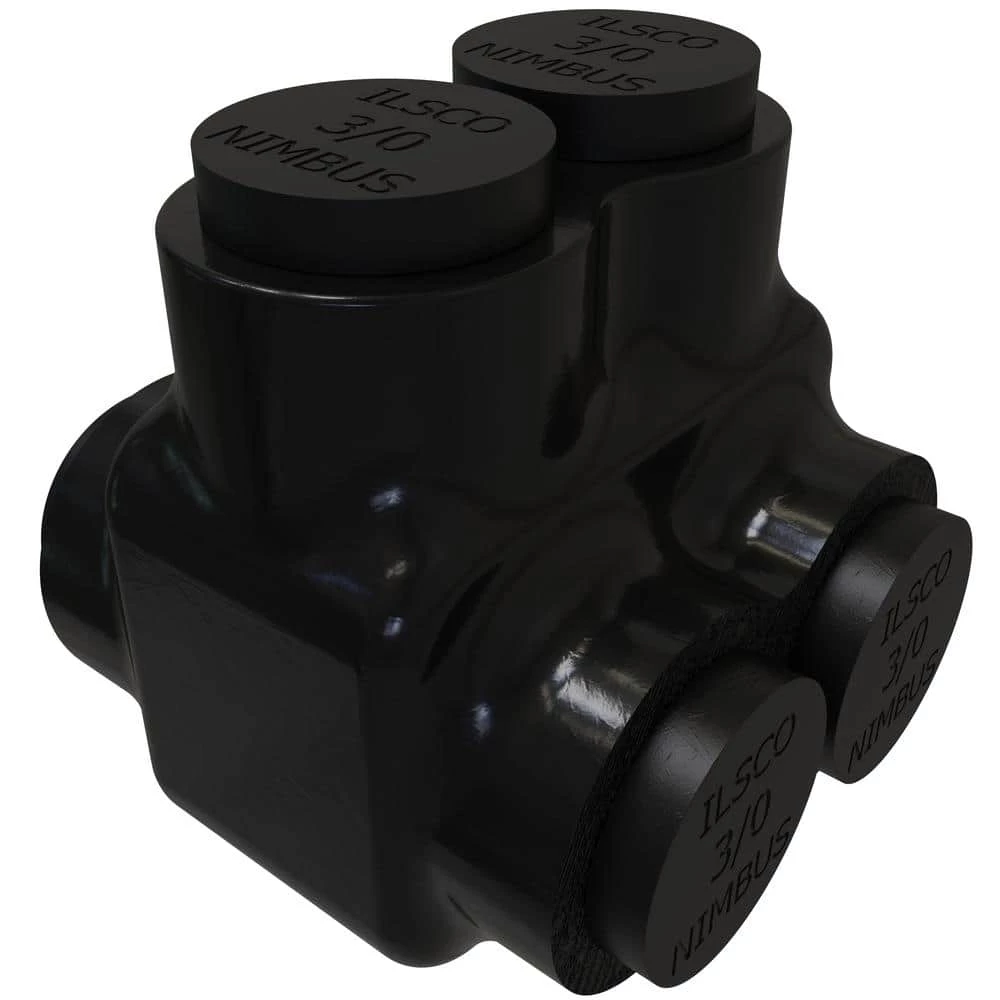

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 2-Ports, Dual Sided Entry, Tin Plated by ILSCO
Original price was: $48.49.$34.43Current price is: $34.43.
- There are quality problems, free return and exchange
- Safe and Secure Payments, Always
- Fast and Secure Payments
- Free Shipping, Quality Goods
Over the years ILSCO built a solid reputation as an industry leader in the manufacture of electrical connectors. With product diversification and innovation, we have become known for much more. Nimbus connectors are made of a high dielectric strength plastisol for chemical resistance and feature a UV-rated black cover.
- Dual rated for copper and aluminum connectors
- UL 486 A/B, 90°C rated
- Cold temperature rated to minus 45°C
- For multiple inputs, the inputs must be staggered with outputs to allow for ampacities to be additive per NEC table 310.16 and 310.17
- UL Listed and CSA certified for 600-Volt, 90°C
| Color Family | Black |
|---|---|
| Electrical Product Type | Wire Connector |
| Maximum Wire Capacity | 6 |
| Minimum Wire Capacity | 3/0 |
| Package Quantity | 1 |
| Returnable | 90-Day |
| Certifications and Listings | CSA Listed,UL Listed |
| Manufacturer Warranty | 1 Year Limited |
| Connector Depth (in.) | 2.277 |
| Connector Height (in.) | 1.965 |
| Connector Width (in.) | 1.889 |
